Powerdynamo for DKW SB500

System 76 35 799 00 => €/$	generator/ignition for DKW SB500 follow up system for 70 07 799 00 Version for SB mit stock Dynastart see System 76 35 799 DY.
	Magnet based generator with integrated ignition. Output at 12V/150W DC. Solid state ignition. Replaces old dynamo, points, centrifugal governor, ignition coils. Ignition ist static as with the modern carburants and the high tension ignition there is no need to have reduced advance at startup (we have tested that). Rotor is at 2kg much lighter than original over 6kg rotor. This helps the engine to turn more freely and reduces wear on the main bearings. No changes on engine reguired, fits as original dynamo.

advantage over original system	the system is available (DKW system is not) all parts are new more light output (you may use a 12V/40-45 Watt) very stable ignition with solid spark better starting, better fuel burning no wear anymore on points no delicate centrigugal governor any more much reduced wear on crank bearings due to reduced rotor weight
documentation	assembly instructions wiring diagram parts in the pack (photo)

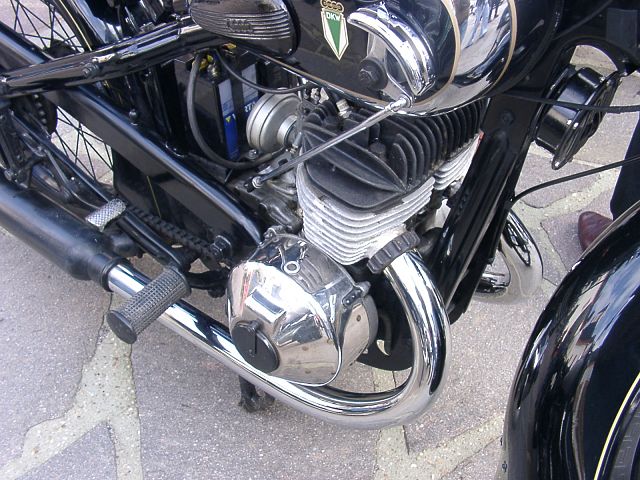

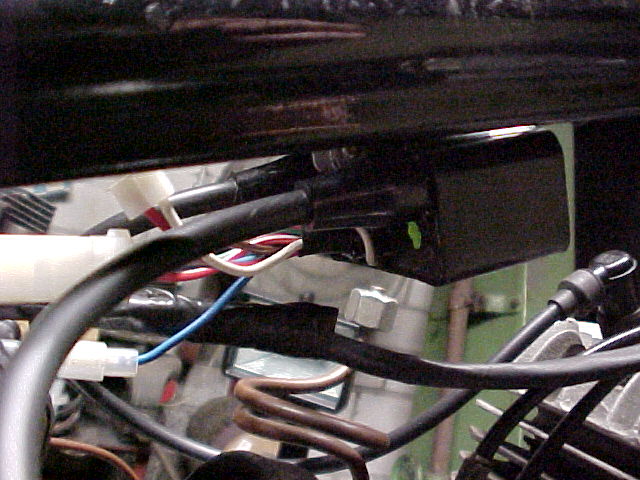

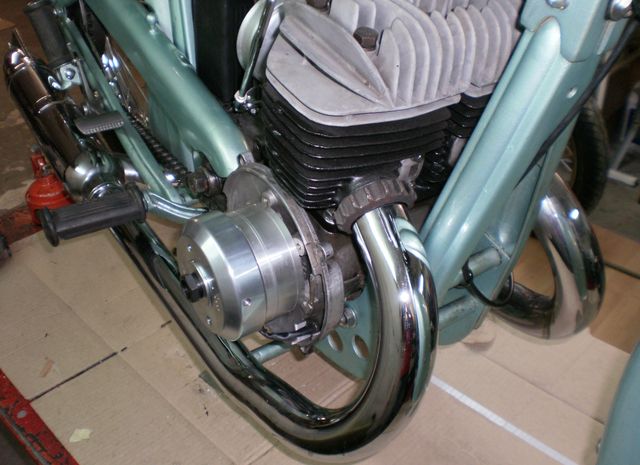

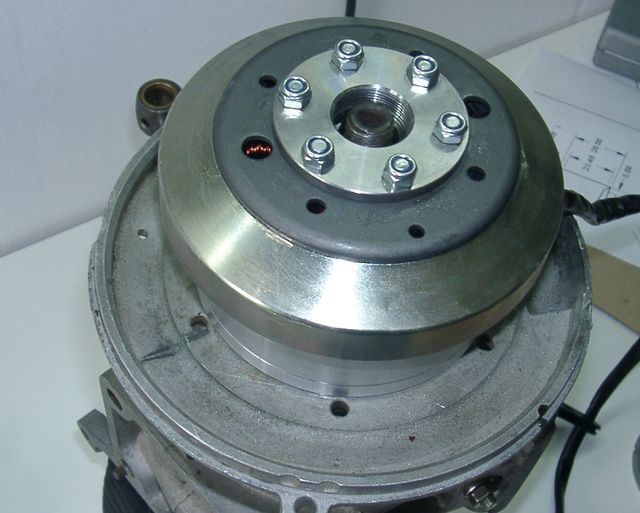

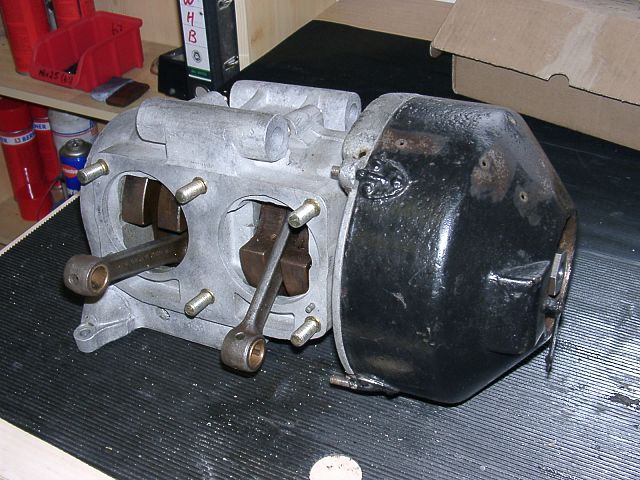

Photos	a SB500 with the system the new stator unit engine block with the system view at new rotor further picture rotor ignition coil at frame holder plate for coil (proposal) ignition coil on holder plate relay in switch box engine of a well restaured SB500 (photo taken at vintage bike rally Augustusburg 2004)
