Powerdynamo for BMW R24, R25 and R26

System 73 83 999 00 => €/$	generator / electronic ignition for BMW R24/ R25/0/2/3 and R26 improved follow up system for discontinued system 70 83 999 00
	Magnet based generator with integrated solid state ignition. Output at 12V/180W DC. Ignition with own power supply from within the system. Replaces old 6 Volts dynamo system ZLZ 45/60, regulator, magnet unit, centrifugal advance unit in above listed BMW. Does not require changes on crankcase. The system is technically capable of running without battery. improvements over previous system 70 83 999: - timing may now be finetuned without taking rotor off by turning body in long holes - better starting - more lighting output of 12V/180W - housing now same height as stock BMW unit
Advantage over original system:	all parts are new solid state ignition and advance more light output (with light bulb 40/45W) very stable ignition with solid spark better starting, better fuel burning no wear anymore on collector, govenor and points

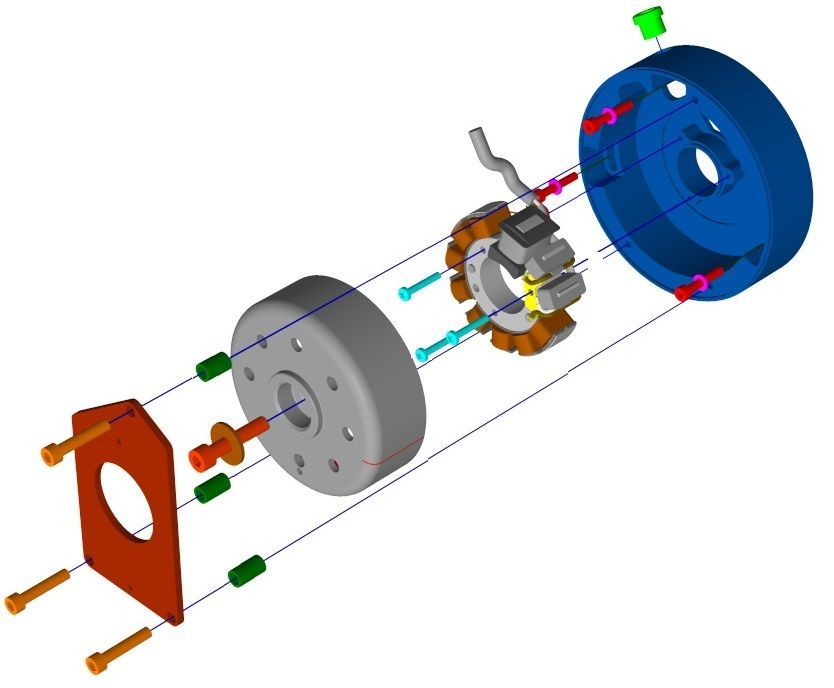

Documentation: click images to enlarge them	assembly instructions wiring diagram parts in the pack (photo)

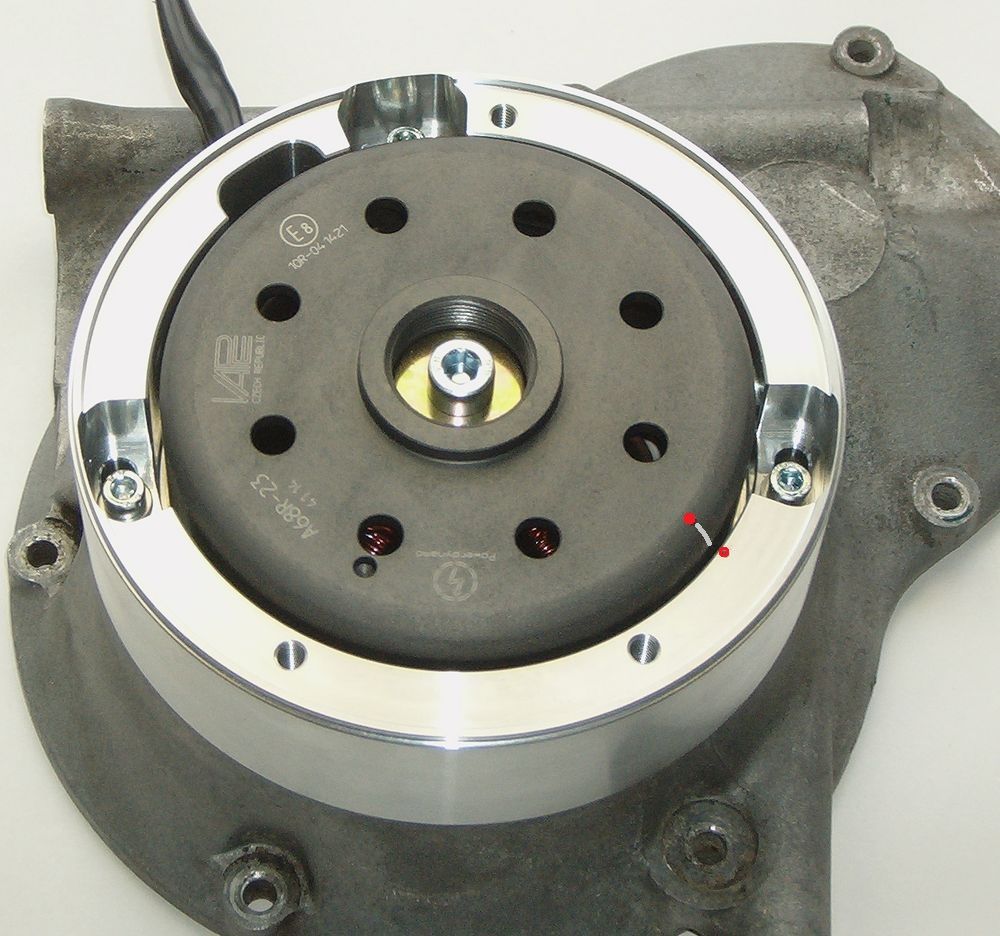

Photos:	a R25/3 with the system - nothing much visible of it the new system the new stator unit fixing of the ignition coil, the advance unit and the regulator (photos R25) further proposal for fitting ignition coil, advance unit and regulator (photos R26) the simplest solution: regulator and advance unit in an empty battery housing
