Powerdynamo for Greeves Griffon with Motoplat ignition

System 71 56 799 00 discontinued	generator / electronic ignition for Greeves Griffon with Motoplat magneto
	Magnet based generator with integrated solid state ignition. Light output 12V/70W AC. Ignition with own power supply from within the system. Replaces original Motoplat magneto and points. Requires small modification magneto seat (wire outlet) and even smaller on original magneto backplate (level machining of the plate). For Greeves with Stefa ignition see here.
Important remark: All AC systems are made for use in offroad sports and do neither support battery charging nor side indicators. You may therefore not normaly use it on public roads (unless your local regulations permit). Consult your local road traffic regulations for use in normal traffic. Should you need side indicators and/or battery, ask for a DC version of the system. for that here.
Advantage over original system:	all parts are new solid state ignition more light output (with light bulb 40/45W) very stable ignition with solid spark better starting, better fuel burning no wear anymore on points
Documentation:	assembly instructions wiring diagram parts in the pack

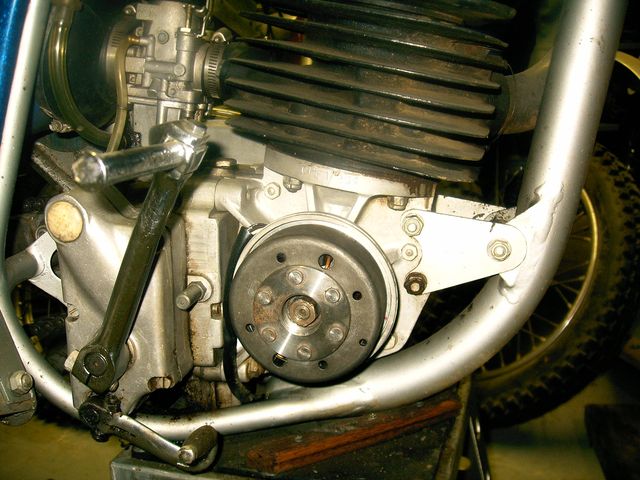

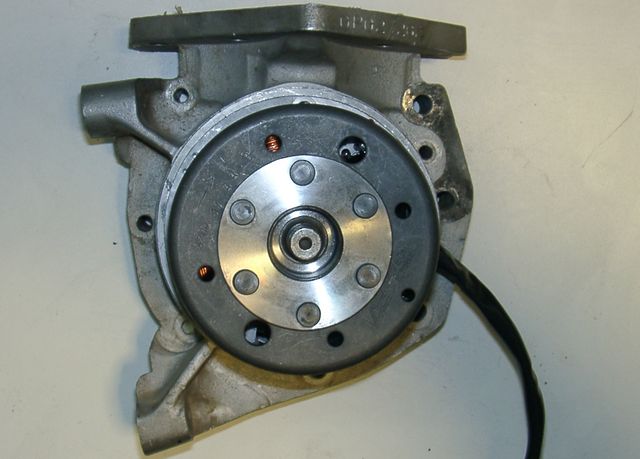

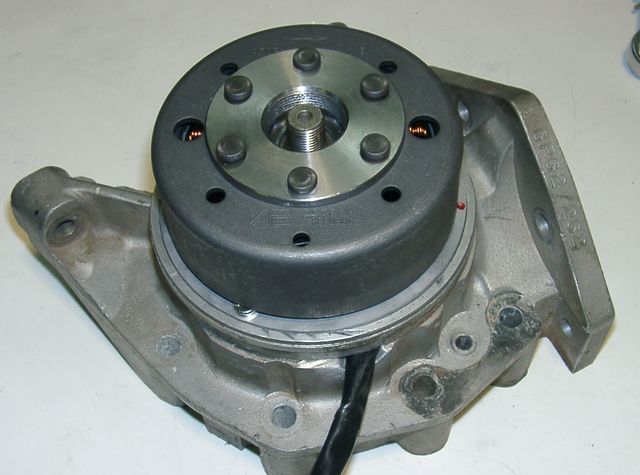

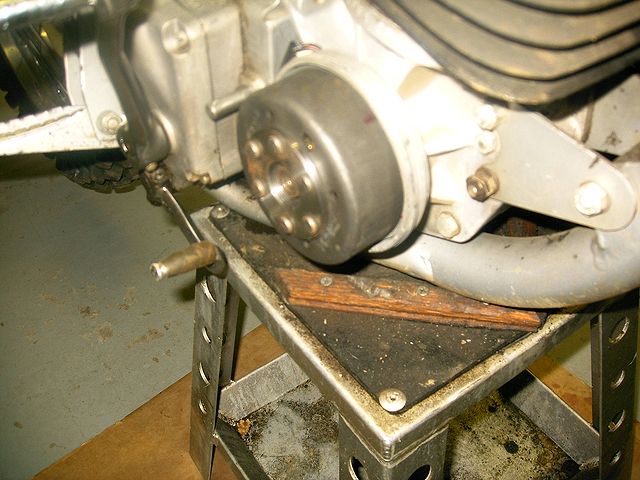

Photos:	system already in use for some time further picture of this system engine with the new magneto further picture with rotor the small needed change on the magneto seat the level machined backplate with the inset new carrier ring the original cover on, nothing to be seen view at the new stator ignition timing (rotor at ignition moment)
